CABLE MANAGEMENT
Cable Management is a broad term used to describe the components or methods used to keep fiber optic and copper cabling organized. Fiber optic cable is sensitive to signal loss and potential damage when subjected to macro-bends. A well-managed fiber network will maintain signal integrity, improve accessibility during maintenance, and create a clean and aesthetically pleasing product. Safely deploy fiber optic networks by using hook and loop cable ties, distribution rings, horizontal or vertical duct managers, ladder rack cable runways, and more within the network.

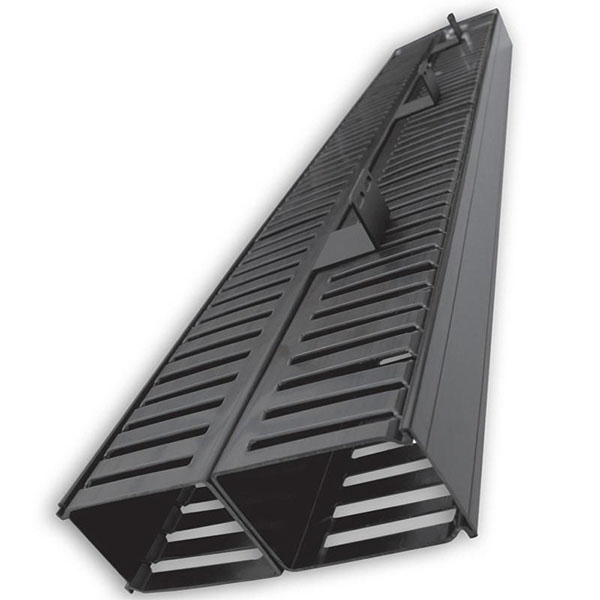

These Vertical Cable Managers are designed for use with Floor Enclosures. We also offers a version supporting 2-post open frame racks. Constructed of a steel mounting plate with dual-sided finger duct, these managers have a cable capacity between 100 and 140 cables depending on the selected version.
| Product | Part # |
|---|---|
| Vertical Dual Sided Finger Duct Style Cable Manager, Floor Enclosure Style, Black, opening 1.6”W x 4”H x 48”L | VF-04-100 |
| Vertical Dual Sided Finger Duct Style Cable Manager, Floor Enclosure Style, Black, opening 1.6”W x 4”H x 72”L | VF-07-100 |
| Vertical Dual Sided Finger Duct Style Cable Manager, Floor Enclosure Style Black, opening 2.2”W x 6.4”H x 72”L | VF-07-140 |
| Vertical Dual Sided Finger Duct Style Cable Manager, 2 Post Rack Style Black, opening 2.2”W x 6.4”H x 72”L | VR-07-140 |

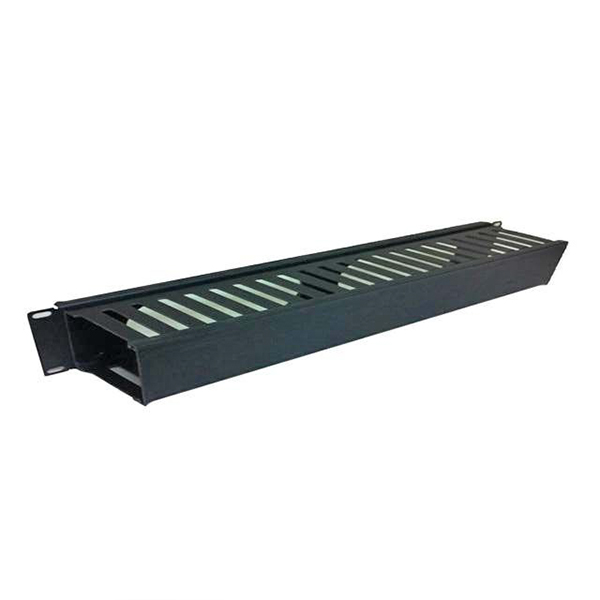

These Horizontal Duct Cable Managers are designed for use with any standard size open frame racks, wall enclosures and floor enclosures. They have a single-sided finger-duct design with a removable cover lid.
| Product | Part # |
|---|---|
| Horizontal Single Sided Finger Duct Style Cable Manager, Black, 1.75”H x 19”W x 2”D | HF19-01-040 |
| Horizontal Single Sided Finger Duct Style Cable Manager, Black, 3.5”H x 19”W x 3.2”D | HF19-02-200 |
| Horizontal Dual Sided Finger Duct Style Cable Manager, Black, 3.5”H x 19”W x 6.4”D | HF19-02-200D |
COOPER B LINE CABLE HOOKS AND CABLE TO BEAM FASTENERS

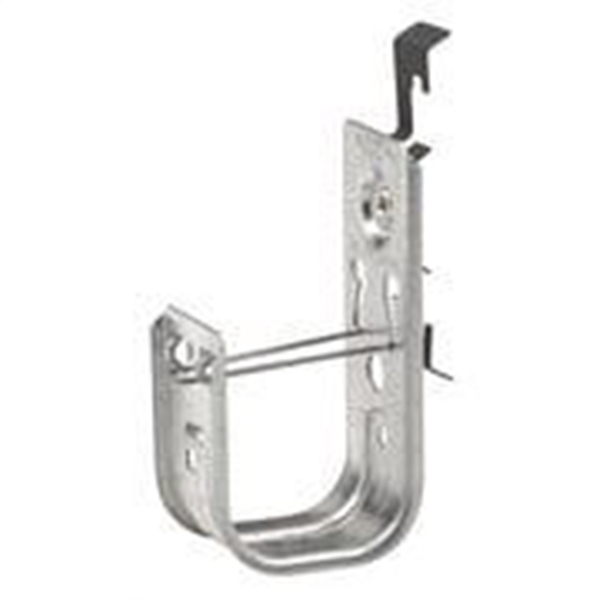

Cable hooks or J-Hooks are an excellent solution for supporting cables of all types. Cable to Beam fasteners rotate 360 degrees to allow cable to run in any direction and they do accept cable ties. The exclusive Qwik-Latch cable retainers provide secure containment of cables.
| Product | Part # |
|---|---|
| 1-5/16” Cable Hook or J-Hook, Box of 50 | BCH21 |
| 2” Cable Hook or J-Hook, Box of 50 | BCH32-50 |
| 4” Cable Hook or J-Hook, Box of 25 | BCH64 |
| 1 5/16” Cable to Beam Fastener, Box of 50 | BCH21C2 |
| 2” Cable to Beam Fastener, Box of 50 | BCH32C2-50 |
DATA CABLE ACCESSORIES

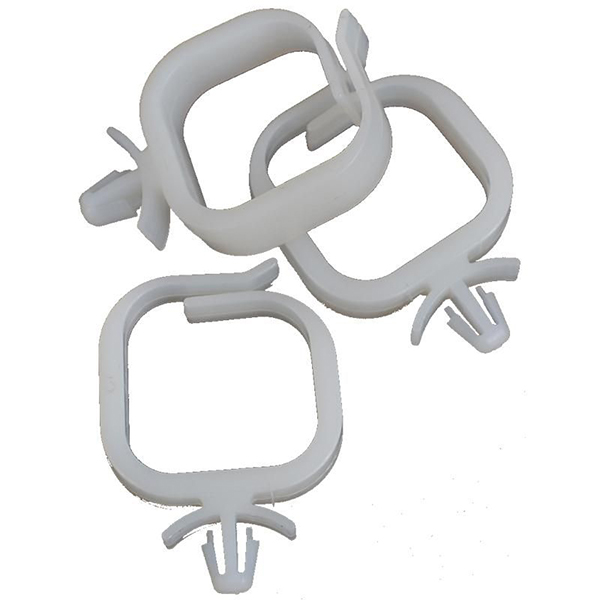

Utilize plastic distribution rings or “D” rings, to attach to a backboard, ceiling or a wall to support voice and data cables. The plastic rings feature rounded edges that will prevent damage to the wire and cable in addition to allowing for easier “pull.” Available in 2”, 3” or 5” sizes.
| Product | Part # |
|---|---|
| Plastic Distribution Ring (2”) | F1-PDR2 |
| Plastic Distribution Ring (3”) | F1-PDR3 |
| Plastic Distribution Ring (5”) | F1-PDR5 |

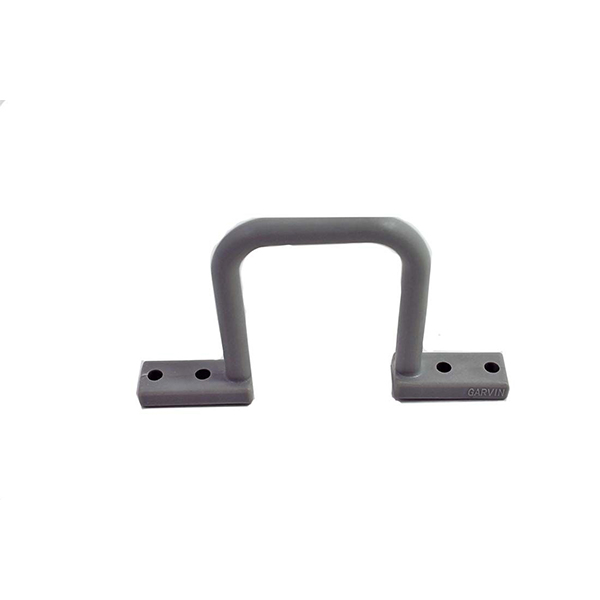

| Vertical D-Ring Cable Manager for open frame racks, Depth 3.25” - 10 per pack | VD00034 |
| Vertical D-Ring Cable Manager for open frame racks, Depth 5.7 - 10 per pack | VD00070 |

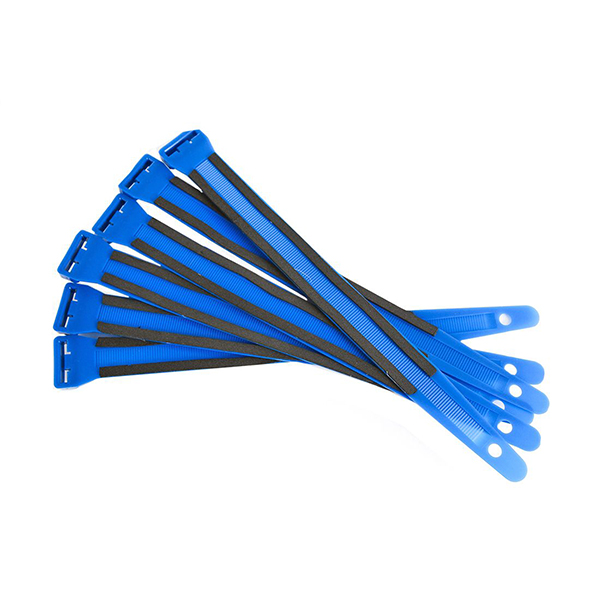

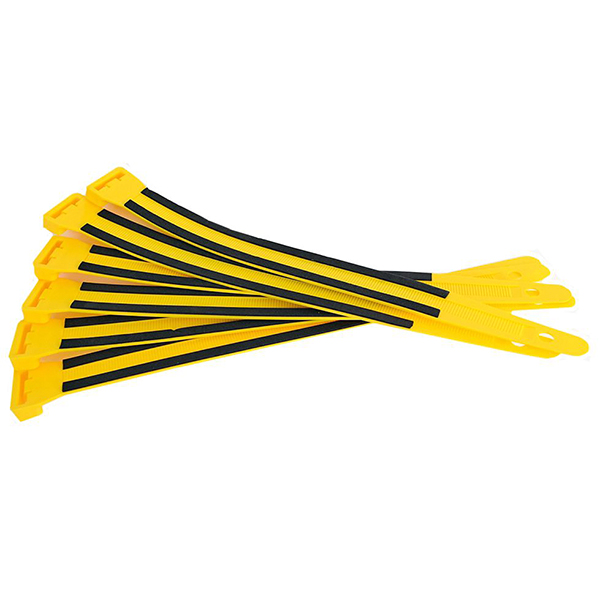

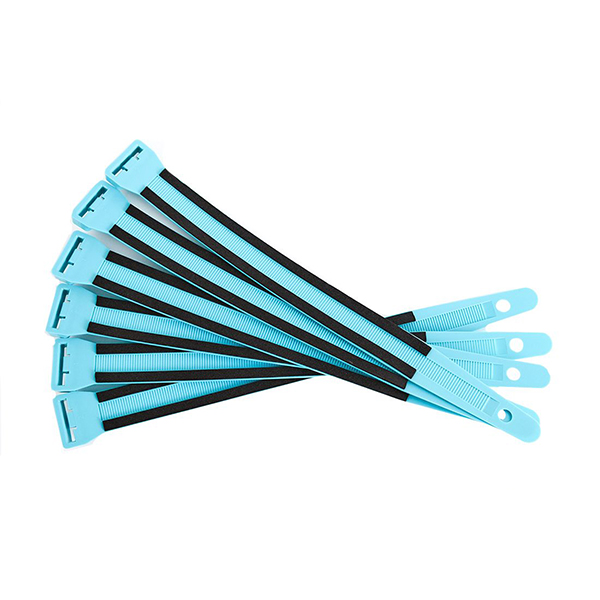

FIS FIBER OPTIC TIE WRAPS
It’s easy for installers to over-cinch thin zip ties, resulting in macrobends that attenuate fiber otpic cables. With copper cables, the weight of cables pressing against thin ties can damage or deform them enough to create crosstalk issues. To solve these problems, FIS Blue created the Universal Cable Strap with Foam Padding. FIS Blue Fiber Optic Tie Wraps are 1” wide and 12” long, and they are available in your choice of colors. Substitute “X” with color of your choice: AQ = Aqua, BK = Black,
BL = Blue, GR = Green, OR = Orange, and YE = Yellow.
FIS BASIC FIBER OPTIC TIE WRAPS
The FIS Blue Basic Fiber Optic Tie Wrap is just like the current FIS Blue Fiber Optic Tie Wrap offer, but without the padding. It is designed for communications cable with a wide design profile and reusable nature. FIS Blue Basic Tie Wraps are 1” wide and 12” long, and they are available in your choice of colors. Substitute “X” with color of your choice: AQ = Aqua, BK = Black, BL = Blue, GR = Green, OR = Orange, and YE = Yellow.
Spec Sheet: FIS Blue Tie Wraps
| Product | Part # |
|---|---|
| Tie Wrap with Foam Padding (Pack of 6) | FOTW-X-6 |
| Tie Wrap with Foam Padding (Pack of 50) | FOTW-X-50 |
| Tie Wrap with Foam Padding (Pack of 100) | FOTW-X-100 |
| Basic Tie Wrap (Pack of 6) | BTW-X-6 |
| Basic Tie Wrap (Pack of 50) | BTW-X-50 |
| Basic Tie Wrap (Pack of 100) | BTW-X-100 |
-
- Brand ONE-WRAP®
-
- Brand ONE-WRAP®
-
- Brand ONE-WRAP®
-
- Brand ONE-WRAP®
-
- Roll

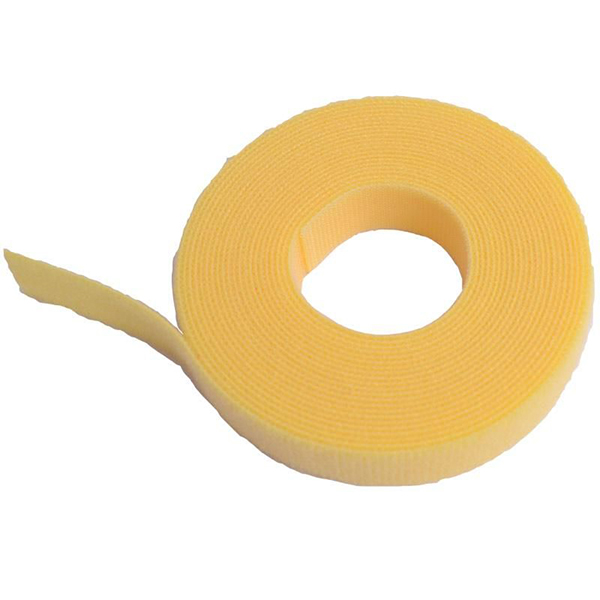

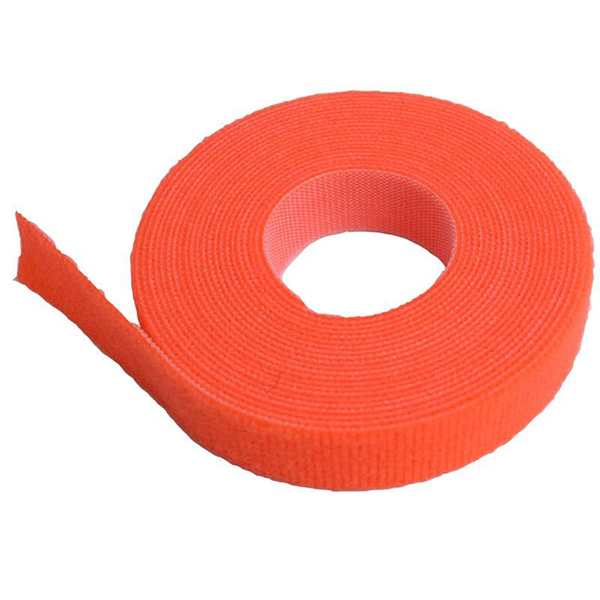

VELCRO® BRAND ONE-WRAP®
Bring your fiber optic cable installation to a new level with color match VELCRO® Brand ONE-WRAP® straps. Colors match fiber cable for enhanced cable type identification and installation appearance. VELCRO® Brand ONE-WRAP® straps are a safe alternative to other cable ties and will not pinch, damage or introduce unwanted insertion loss into the fiber network and are designed to bring your fiber network install from ordinary to extraordinary.

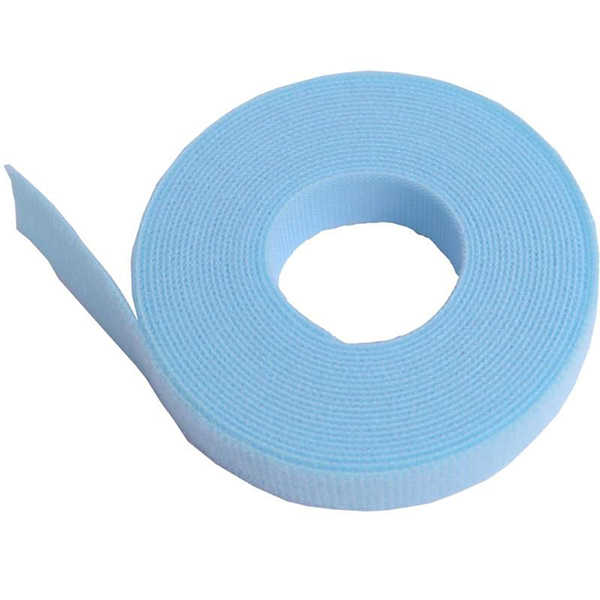

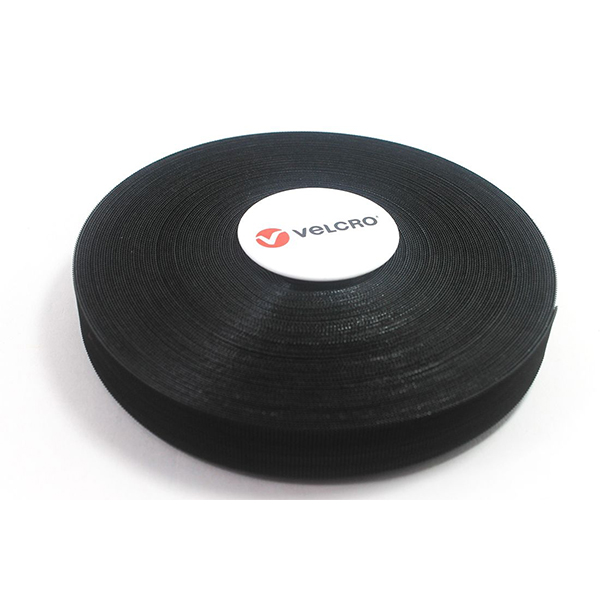

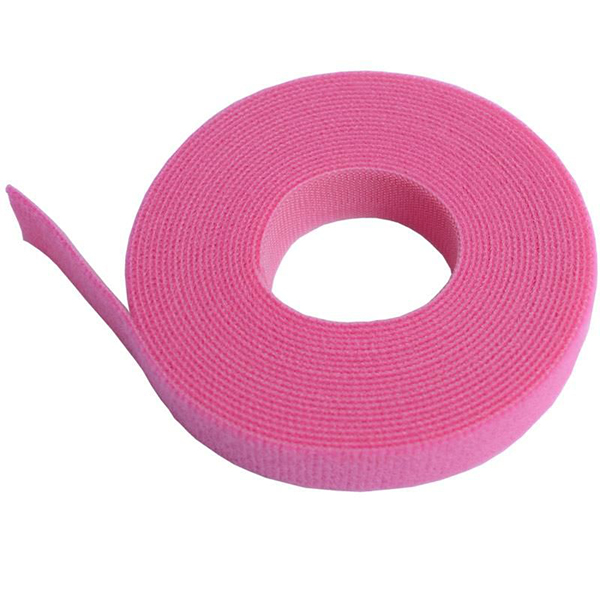

VELCRO® BRAND ROLL
This VELCRO® Brand Roll dispenses just like a tape roll and can be cut to the desired length. The center core of the roll has a male/female Velcro patch attached, which enables the roll to be affixed to any ladder or steel surface for convenient dispensing.
| Product | Part # |
|---|---|
| VELCRO® Brand ONE-WRAP® 3/4” x 25 Yard Roll Yellow | 126886 |
| VELCRO® Brand ONE-WRAP® 3/4” x 25 Yard Roll Aqua | 126937 |
| VELCRO® Brand ONE-WRAP® 3/4” x 25 Yard Roll Erika Violet | 126927 |
| VELCRO® Brand ONE-WRAP® 3/4” x 25 Yard Roll Orange | 176067 |
| VELCRO® Brand ONE-WRAP® 3/4” x 25 Yard Roll Cranberry (Fire Retardant/UL Listed) | 151504 |
| VELCRO® Brand ONE-WRAP® 3/4” x 25 Yard Roll Black (Fire Retardant/UL Listed) | 151494 |
| 75’ Velcro® Brand Roll 3/4” Black with Center Core | F1-VROLL |

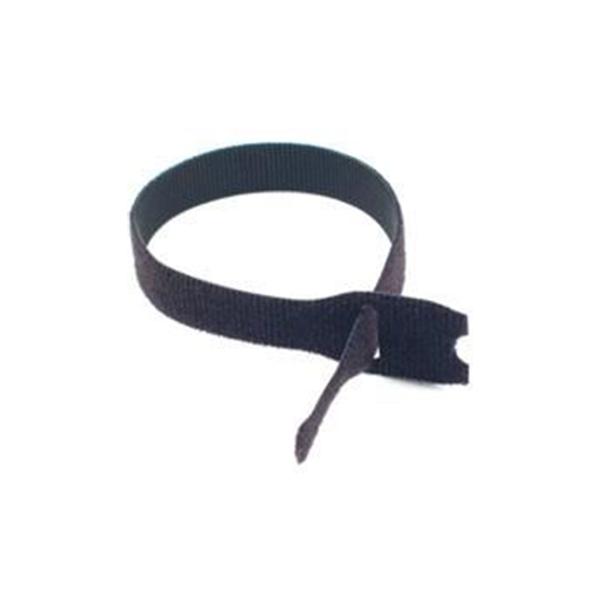

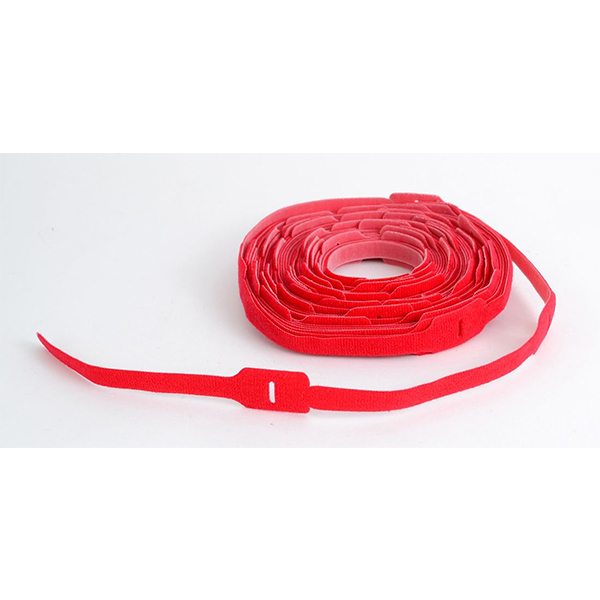

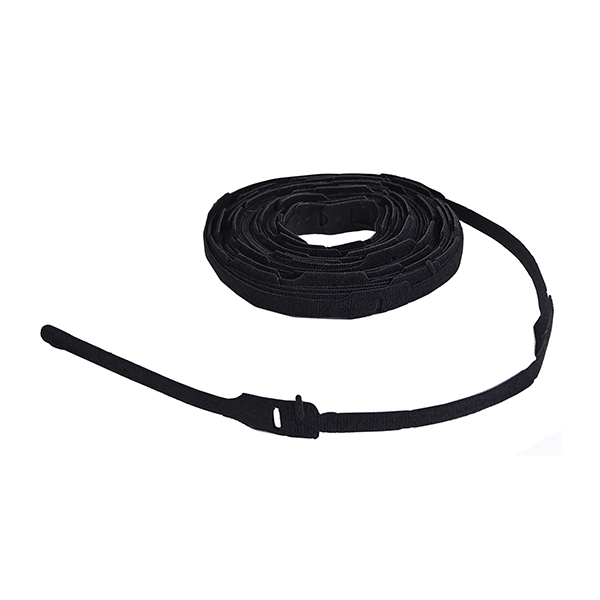

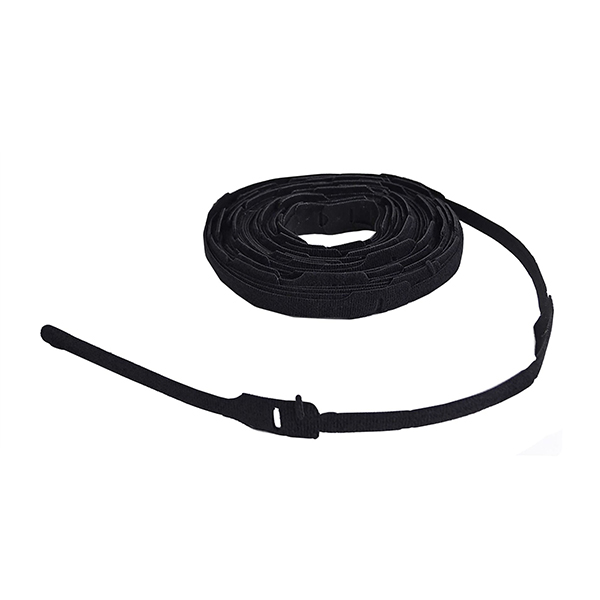

Protect your Fiber Optic and Category cable from over cinching with tie wraps. These low-cost wraps are reusable and are available in red and black. Now provided with cutout for screw mount support.
| Product | Part # |
|---|---|
| Red Tie Wrap 1”x 8” (75 pk) | CT733 |
| Black Tie Wrap 1”x 8” (75 pk) | CT255 |
| Black Tie Wrap 3/4” x 5” (25 pk) | CT-3105 |
| Black Tie Wrap 1”x 8” (25 pk) | CT-3108 |
| Black Tie Wrap 1”x 12” (25 pk) | CT-3012 |

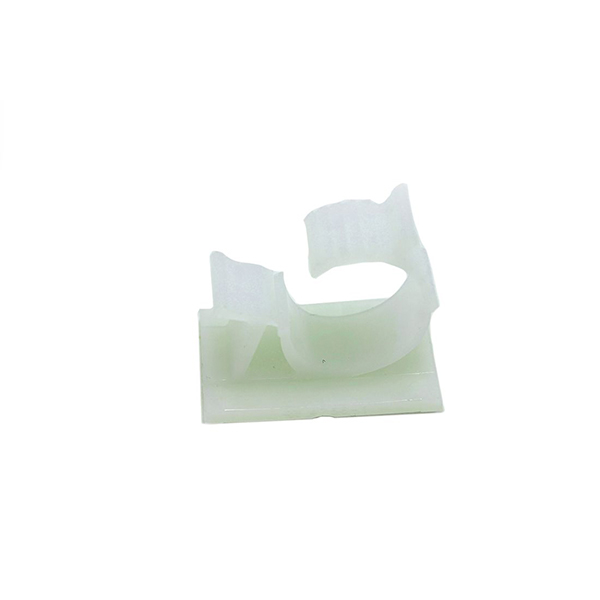

The ability to secure a connector or cable to a desired location is possible with this adhesive backed clamp. Re-enterable and adjustable up to 5/8’’.
| Product | Part # |
|---|---|
| Connector and Cable Clamps | F1-6209 |
| Cable Holder (package of 10) | F1-13187 |
| Product | Part # |
|---|---|

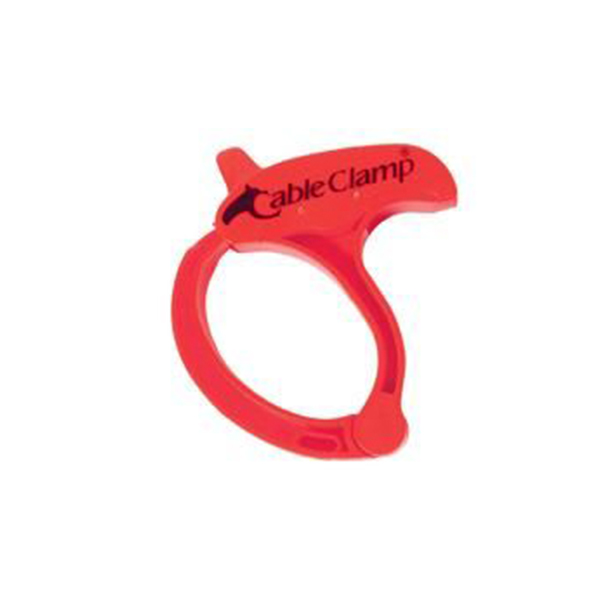

| Small Cable Clamp (color red) | CCS-0601 |

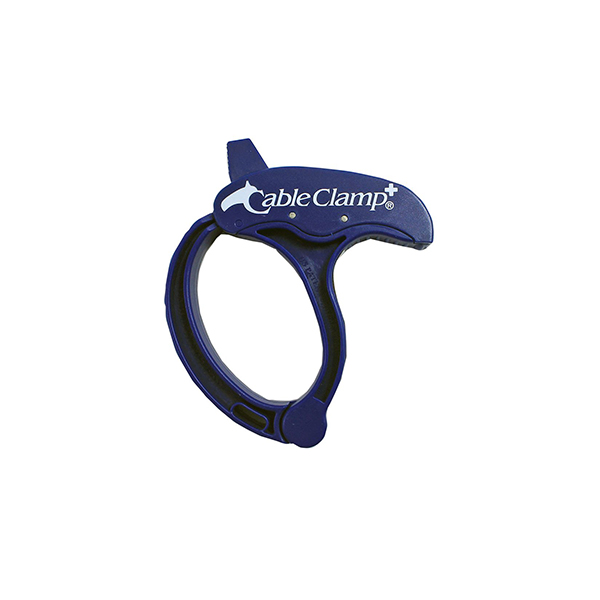

| Large Cable Clamp (color blue) | CCS-0201 |

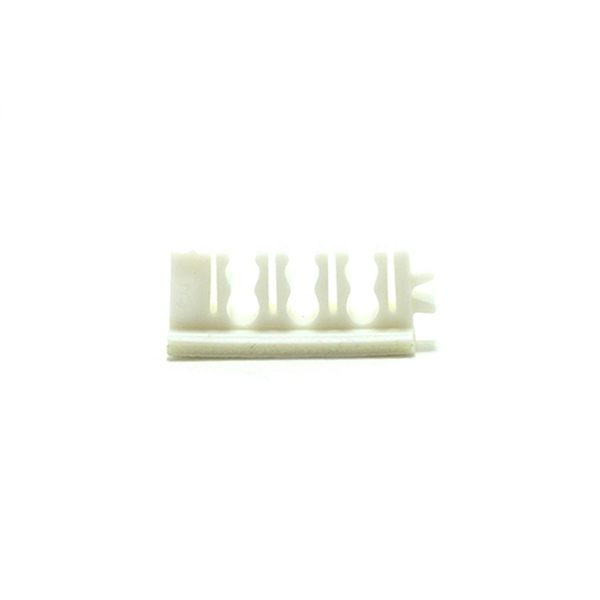

EXPANDABLE FIBER BRACKET
Designed to hold up to six 3.0mm fiber optic cables, this bracket provides expansion capabilities to fiber optic systems. Made from flame retardant nylon, cables snap into grooves without damaging the fiber.
| Product | Part # |
|---|---|
| Expandable Fiber Bracket (Package of 10) | F1-9124 |

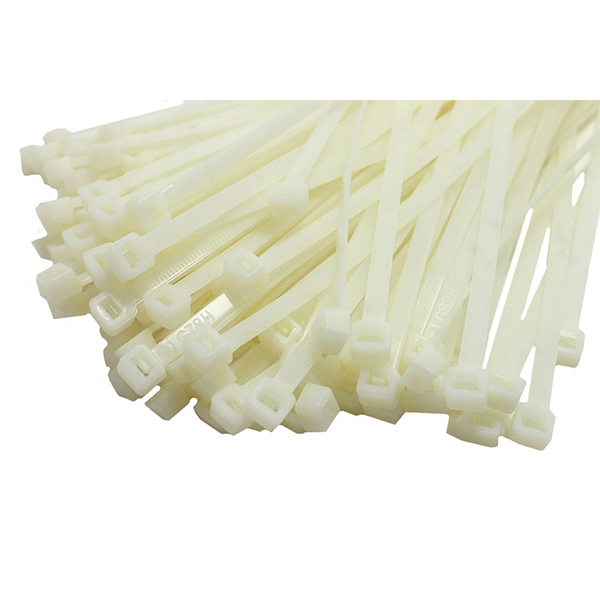

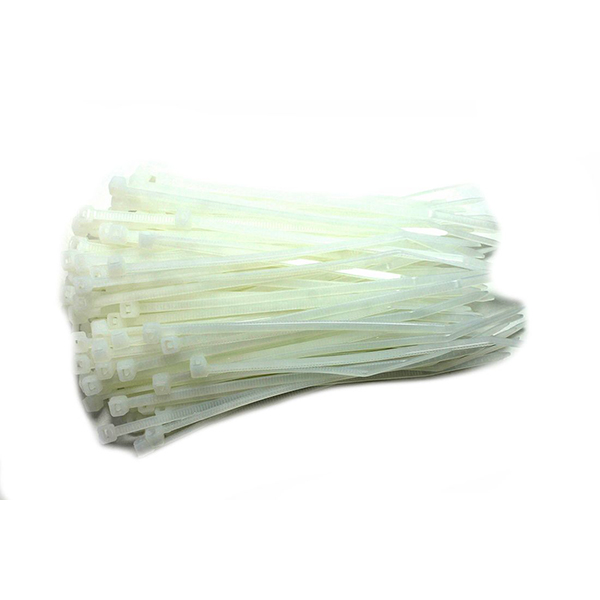

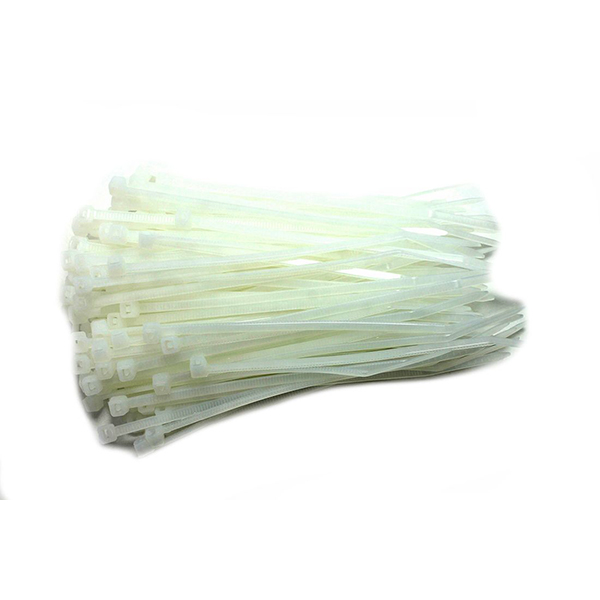

Available from FIS are two sizes of tie wraps. The 4” long by 1/8” wide wrap is excellent for securing simplex or duplex cable. The 7” long by 3/16” wide wrap is designed to handle wrap diameters up to 1-1/4”.
| Product | Part # |
|---|---|
| 4’’ Tie Wraps (100 pk) | T18S |
| 7’’ Tie Wraps (100 pk) | T50S |

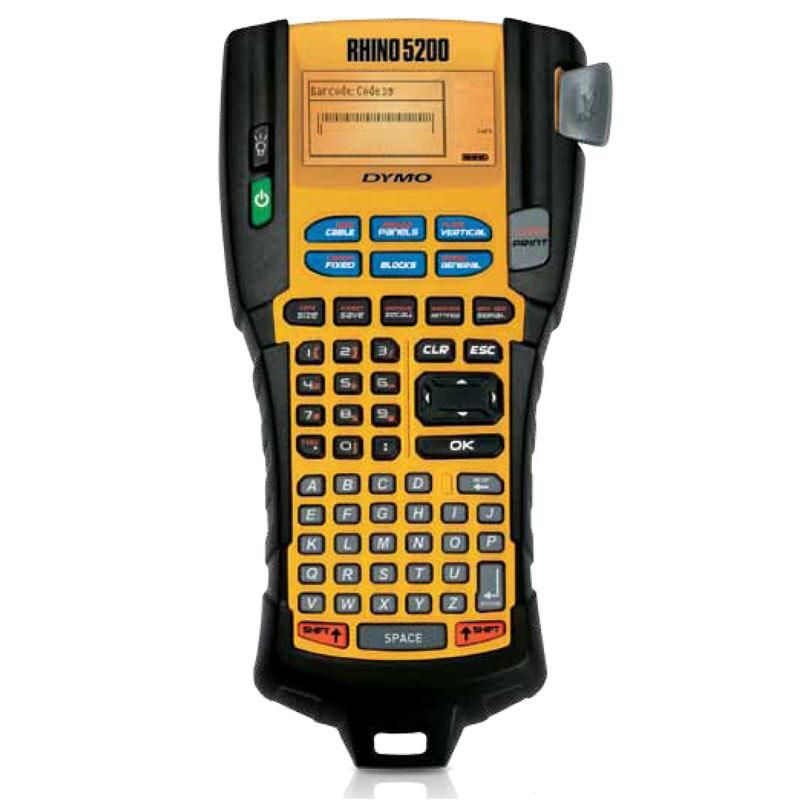

DYMO RHINO™ INDUSTRIAL 5200 HARD CASE KIT
Rugged, versatile, and packed with time-saving features, the Rhino™ 5200 meets key ANSI and TIA/EIA 606-A labeling standards – and labels up to 77% faster than the competition. Proprietary Rhino “Hot Key” to automatically size, space and format text for perfect patch panel labels – then press another to print matching cable flags or face plate tabs, without retyping. Print module and fixed-length labels, horizontal and vertical wire wraps, terminal and 110 blocks and much more. Print Code 39 and Code 128 barcodes. Access 100+ industry symbols, fractions, and punctuation marks with a few quick keystrokes. Add the optional quick-charging lithium-ion battery for uninterrupted productivity.
| Product | Part # |
|---|---|
| RHINO 5200 Hard Case Kit | 1756589 |
| RHINO 3/8” White Vinyl Label Cartridge | DY18443 |
| RHINO 1/2” White Vinyl Label Cartridge | DY18444 |
| 1/2” Flex Nylon - Black/White Label Cartridge | DY18488 |

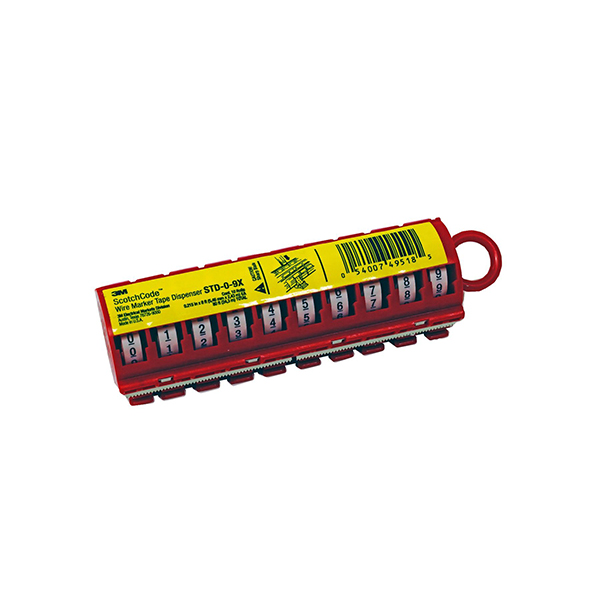

CABLE MARKER TAPE DISPENSER
A dispenser holding 10 rolls of tape, numbered 0-9, gives you the ability to tag patch cables in your fiber optic system for easy identification. The 0-9 rolls of tape may be purchased under a separate part number. Replace “X” with desired number 0-9 for replacements.
| Product | Part # |
|---|---|
| ScotchCode Wire Marker Dispenser with Tape STD-0-9 | STD09X |

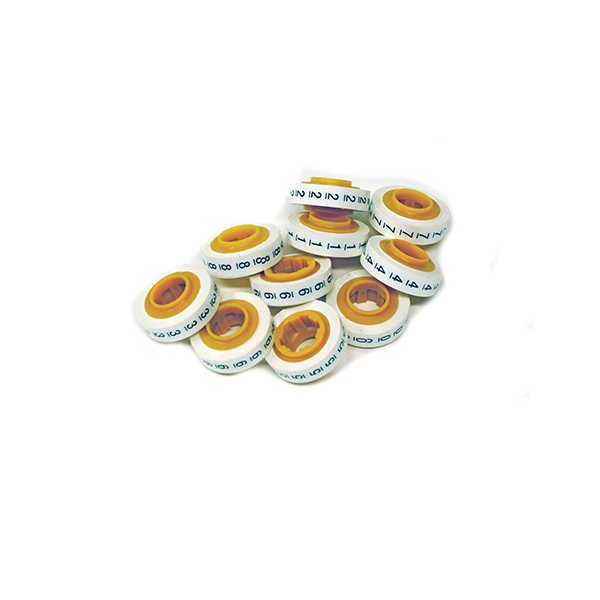

| Numerical marker, numbers 0 through 9 | SDR09 |
| Replacement Reel, individual numbers 0-9 (Replace "X" w/ individual number) | SDRX |
