NuGEN V2 SMPTE Cable Test Set

The Next Generation SMPTE Test Set is designed to evaluate SMPTE hybrid cable assemblies. It consists of a Control Unit and a Remote Unit that have been designed to operate under harsh working conditions. Together, they provide a solution that measures the transmission loss of the optical fibers and determines if the copper conductors are wired correctly.

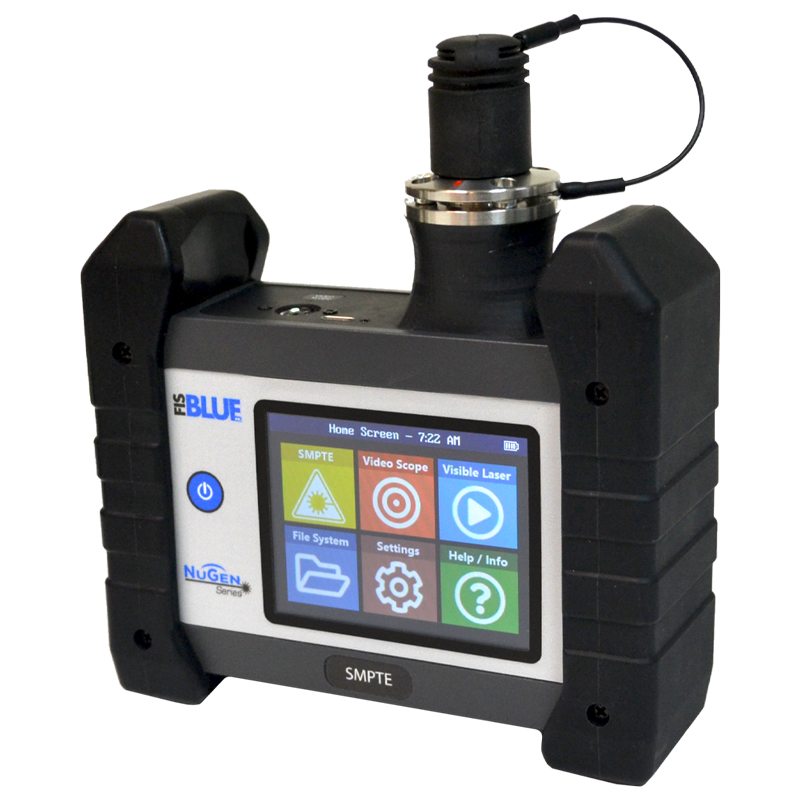

The Control Unit is housed in a rugged case and is simple and straightforward to operate. All functions are accessible through touch-screen operation. Optical power loss and copper conductor wiring are both displayed on-screen to make it easy to quickly determine the integrity of your SMPTE cable. It will show if there is a faulty optical connection as well as faulty electrical connections, including broken, short-circuited, and cross-wired conductors.

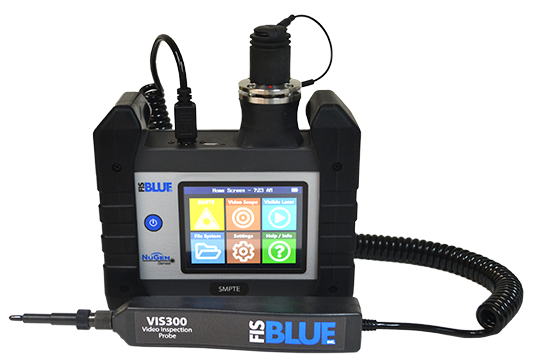

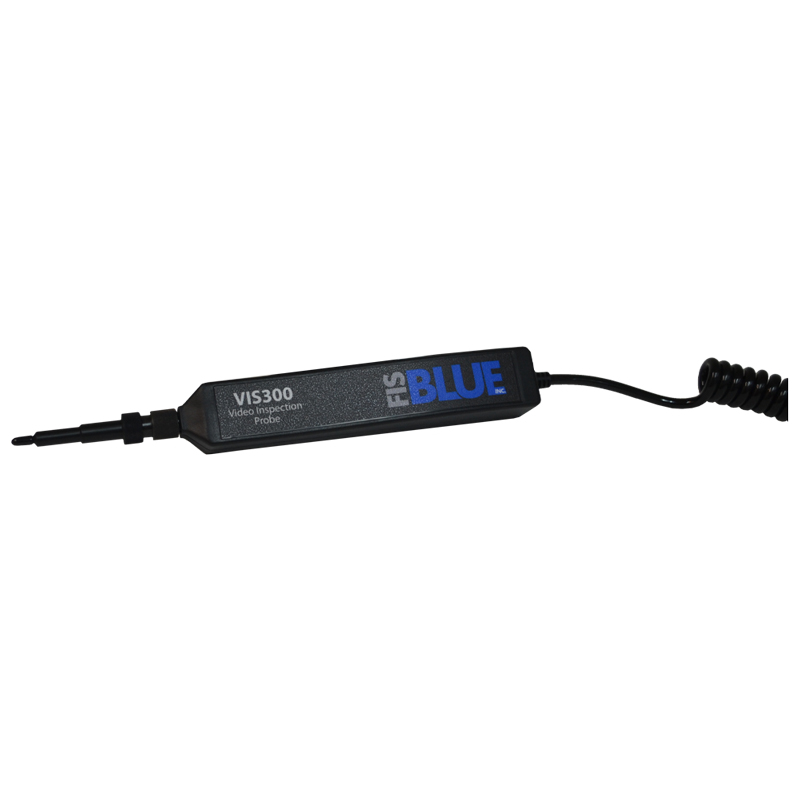

The optional VIS300SMPTE Video Inspection Probe provides automated on-screen examination of the SMPTE optical connectors to minimize loss of transmission due to dirty or damaged connectors. The test results can be saved to the instrument and downloaded to the computer for reporting.

The test set is also outfitted with a visible fault locator to help diagnose issues with the optical fibers. The Remote Unit consists of a completely passive loopback housed in a compact and rugged aluminum enclosure.

The Control Unit has an SMPTE hybrid broadcast cable fixed plug connector, and the Remote Unit uses an SMPTE hybrid fixed socket. This allows the cable to be tested without removing it from a permanent installation.
